Product family

Fuel Flow Meter

Flow meters for diesel, petrol, LPG and other fuels across a range of sizes and outputs.

Request a quote
Flow range
0.08–13333.33lpm
Accuracy
±0.5 or 1 % FSDand tighter
Fluids
diesel
Models
14

14 models

CE-109

CE-109 Positive Displacement Flow Meter

CE-109 flow meter rated to ±0.3 to ±0.5 % accuracy.

Accuracy
±0.3 to ±0.5 %
Body Material Options
cast iron…
Working Temperature
-10 to 80 °C
CE-132

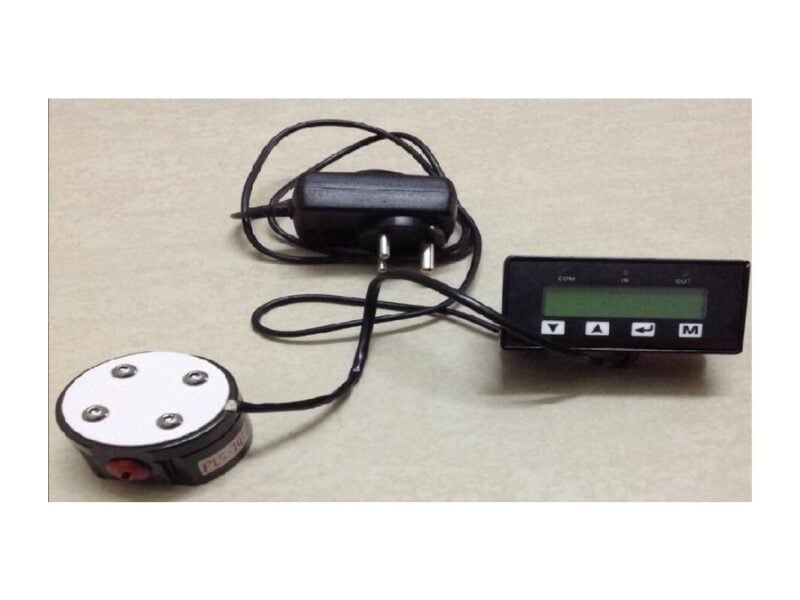

CE-132 Ink Flow Meter

CE-132 flow meter for metered fluid handling.

Maximum Working Pressure
10 MPa
Power Voltage
5-24 V DC
Connection
Thread (M/F) or flange
CE-143

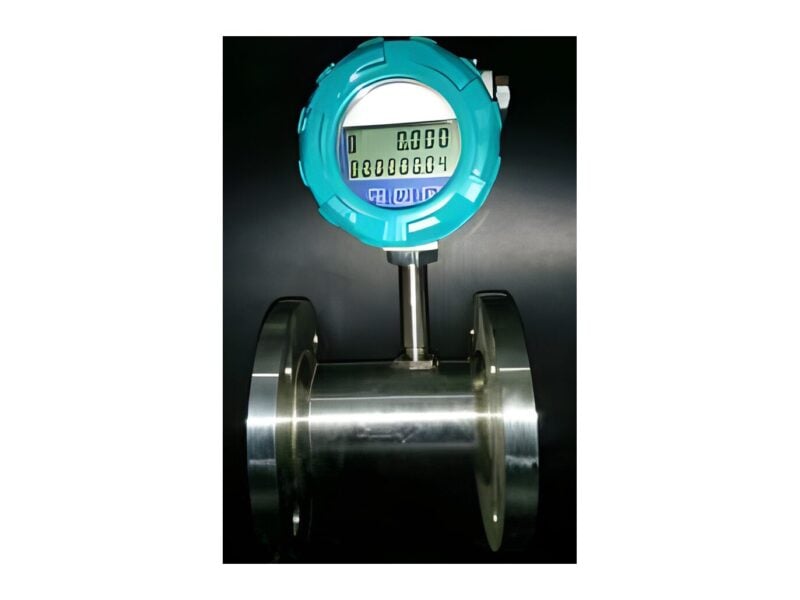

CE-143 Stainless Steel LPG Flow Meter

CE-143 flow meter rated to ±0.5 or 1 % FSD accuracy.

Flow Range (Model Range CE-TFS-004 To CE-TFS-150)
40 to 800,000 L/H
Accuracy (Standard Installation Position)
±0.5 or 1 % FSD
Maximum Working Pressure
6 MPa
CE-144

CE-144 SS Turbine Flow Meter

CE-144 flow meter rated to ±0.5 or 1 % FSD accuracy.

Flow Range (Model Range CE-TFS-004 To CE-TFS-150)
40 to 800,000 L/H
Accuracy (Standard Installation Position)
±0.5 or 1 % FSD
Maximum Working Pressure
6 MPa
CE-25

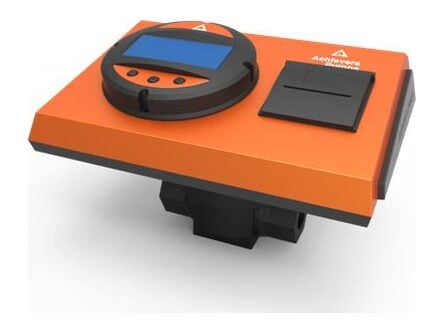

CE-25 Smart Flow Meter

CE-25 flow meter with a flow range of 20-120 lpm.

Flow Range
20-120 lpm
Accuracy
+0.5 %
Max Working Pressure
3.4 Mpa
CE-210

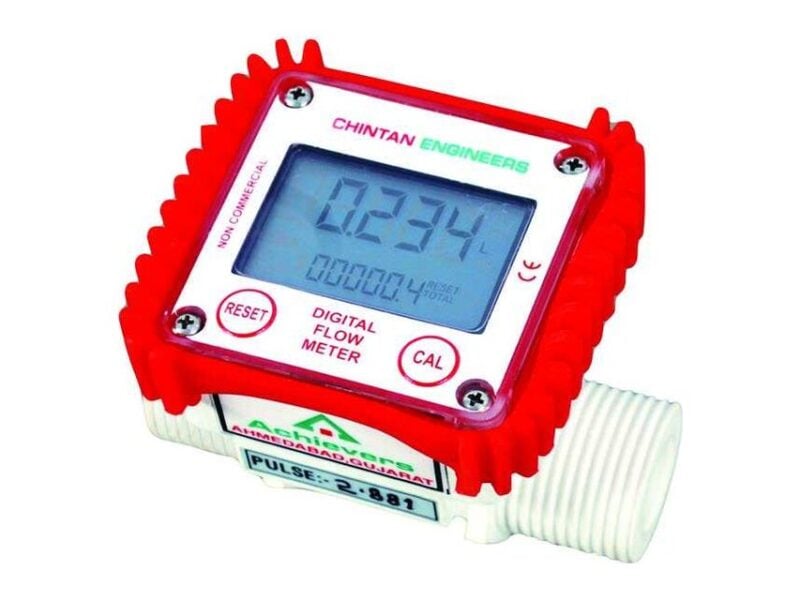

CE-210 Helical Flow Sensor & Display

CE-210 flow meter rated to +/- 0.5 or 1% FSD accuracy.

Flow Range (Across The Line Sizes)
5 to 10,000 L/H
Accuracy (Standard Installation Position)
+/- 0.5 or 1% FSD
Max Pressure
up to 25 bar
CE-211

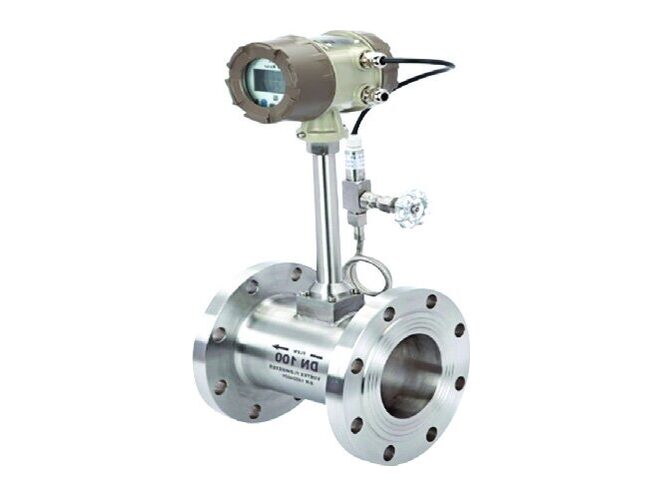

CE-211 Vortex Flow Meter

CE-211 flow meter for metered fluid handling.

Pipe Type
Class 1.0 -40~+400
Temperature
-25~60
Humidity
5%~90%
CE-213

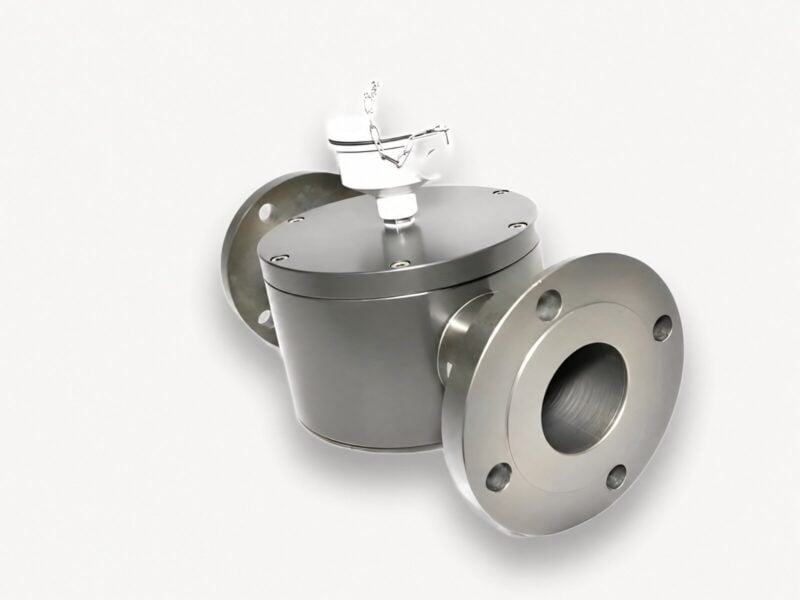

CE-213 Flameproof Flow Meter

CE-213 flow meter rated to ±0.5 % FSD accuracy.

Flow Range (Across The Sensor Sizes)
5 to 150,000 L/H
Accuracy (Standard Installation Position)
±0.5 % FSD
Maximum Working Pressure
10 MPa

Selection

Compare models

Flow, accuracy, register and what each model adds. Verify exact options at quotation.

Model Flow Accuracy Register Highlight
CE-109 — ±0.3 to ±0.5 % — CE-109 flow meter rated to ±0.3 to ±0.5 % accuracy.
CE-113 25–1300lpm ±0.2 % — CE-113 flow meter with a flow range of 25-250 L/min.
CE-132 — — Pulse / Modbus CE-132 flow meter for metered fluid handling.
CE-143 0.67–13333.33lpm ±0.5 or 1 % FSD Digital, Pulse / Modbus CE-143 flow meter rated to ±0.5 or 1 % FSD accuracy.
CE-144 0.67–13333.33lpm ±0.5 or 1 % FSD Digital, Pulse / Modbus CE-144 flow meter rated to ±0.5 or 1 % FSD accuracy.

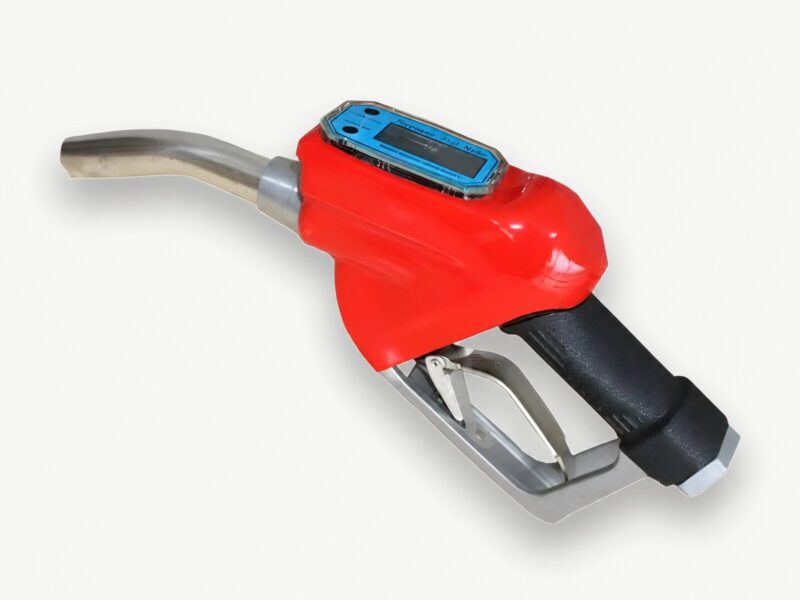

CE-147 120lpm ±0.5 % Digital CE-147 flow meter with a flow range of 120 L/min.
CE-151 20–120lpm +0.5 % Digital CE-151 flow meter with a flow range of 20-120 lpm.
CE-25 20–120lpm +0.5 % — CE-25 flow meter with a flow range of 20-120 lpm.

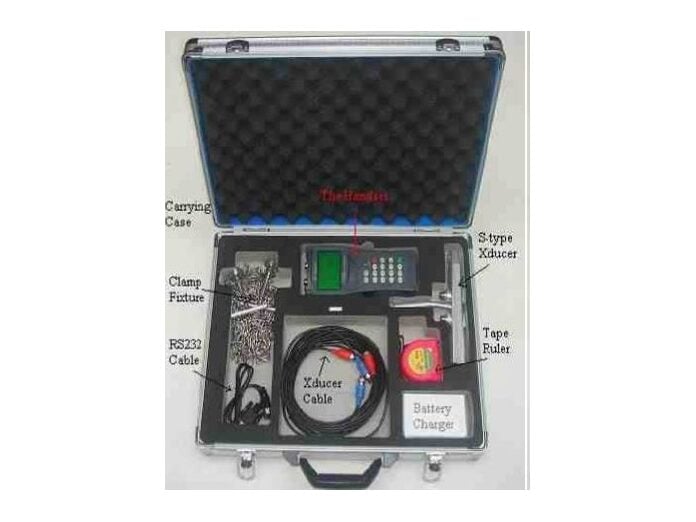

CE-100H — — — CE-100H flow meter for metered fluid handling.

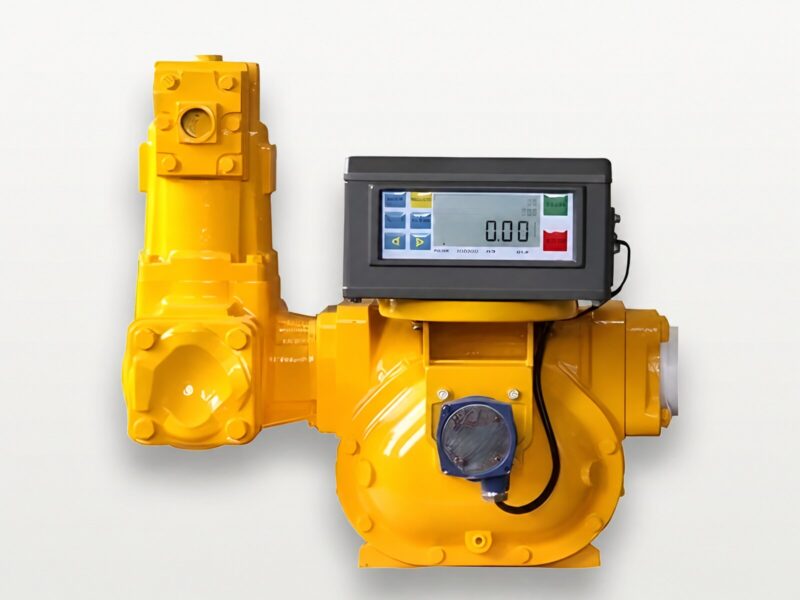

CE-106 25–1300lpm 0.2 % Digital CE-106 flow meter rated to 0.2 % accuracy.

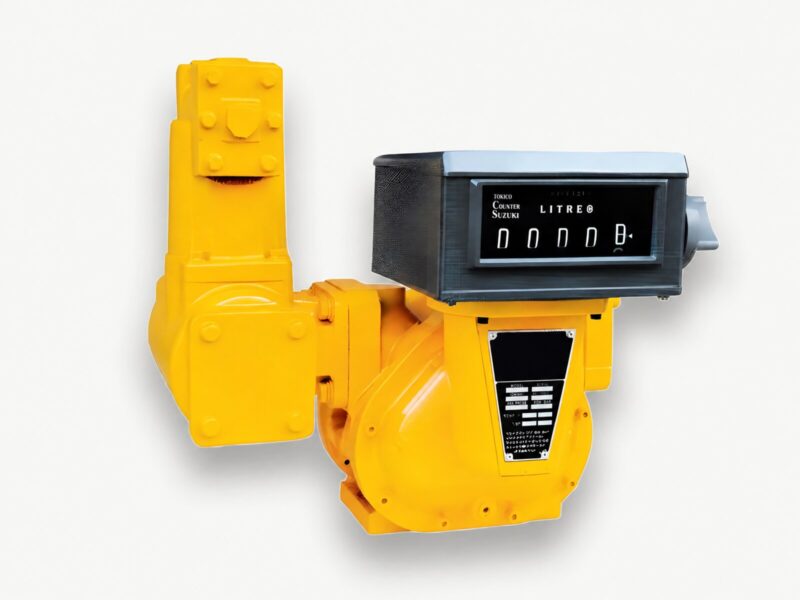

CE-115 25–1300lpm 0.2 % — CE-115 flow meter rated to 0.2 % accuracy.
CE-210 0.08–166.67lpm +/- 0.5 or 1% FSD Digital, Pulse / Modbus CE-210 flow meter rated to +/- 0.5 or 1% FSD accuracy.
CE-211 — — — CE-211 flow meter for metered fluid handling.
CE-213 0.08–2500lpm ±0.5 % FSD — CE-213 flow meter rated to ±0.5 % FSD accuracy.

Source: the model datasheets. Flow is normalised to litres per minute; accuracy is quoted as the sheet states it.

Fuel Flow Meter Systems for Diesel Accountability

Chintan Engineers supplies turbine, oval gear, and helical flow meters engineered for accurate diesel, petrol, and light-oil measurement. Mechanical counters, LCD totalizers, and pulse/analog outputs make them easy to integrate with preset dispensers, batching skids, and data loggers.

Need a flow study? Request a fuel flow meter recommendation.

Quick Specs

  • Meter technologies: Turbine (CE-210), mechanical/digital positive displacement (CE-110/111), high-accuracy PD (CE-113), piston PD (CE-212)
  • Flow coverage: 5 L/h up to 1,300 L/min (model dependent) with ±0.5% standard accuracy and ±0.2% for transfer builds
  • Outputs: Mechanical register, LCD, pulse, 4–20 mA, preset controller, printer
  • Viscosity window: 1 mm²/s fuels through 10⁶ mm²/s heavy fluids depending on model
  • Materials: Aluminium or stainless bodies with Viton/Buna seals for diesel, petrol, biodiesel, and lubricants

Model Comparison

ModelFlow Range*AccuracyOutput / DisplayHighlight FeaturesIdeal Application
——————
CE-110 Mechanical Flow Meter20 – 300 L/min±0.5%Mechanical counter (reset + cumulative)Low pressure drop, rugged PD design, viscosity-independentDepot fueling, truck stops needing mechanical registers
CE-111 Digital Flow Meter20 – 300 L/min±0.5%LCD totalizer + flow rate, pulse-readyBattery-backed electronics, easy preset/PLC integrationSkids/dispenser retrofits needing digital readouts
CE-113 High Accuracy Transfer Meter25 – 1300 L/min±0.2%Printer/register/pulser combinationsCustody-transfer build with air eliminator and strainerBulk loading gantries, ticket printing stations
CE-210 Turbine/Helical Sensor5 – 10,000 L/h±0.5%/±1%Pulse, 4–20 mA, LCD, Hall/ReedHandles wide viscosity swings, compact footprint, pulsation tolerantPLC-connected flow monitoring, chemical/additive dosing
CE-212 Piston PD Meter5 – 60 L/min±0.2%Mechanical or pulse outputMicro-accurate 4-piston assembly with external calibrationFuel dispensers and preset batching systems

* Confirm exact flow rate, viscosity limits, and accessories during specification.

Selecting the Right Fuel Flow Meter

  • Fluid & viscosity: Turbine suits low-viscosity diesel/kerosene; oval gear or helical PD meters cover thicker fluids or low-flow accuracy.
  • Signal requirements: Choose mechanical counters for manual logging or pulse/analog outputs for PLC/SCADA integration.
  • Accuracy & compliance: Deploy CE-113 or CE-212 when ±0.2% custody accuracy, ticket printing, or calibration sealing is required.
  • Mounting envelope: Ensure straight run, filtration, and air elimination; trolley/portable frames available for CE-113.
  • Integration: Combine with preset controllers, printers, and remote monitoring (CE-216) for end-to-end accountability.

Installation & Commissioning

  1. Survey & prep: Check piping orientation, install isolation valves/strainers, and plan wiring for outputs.
  2. Mechanical fitment: Mount the meter in the recommended orientation (horizontal/vertical per model) and secure unions.
  3. Electrical/data wiring: Terminate pulse or 4–20 mA outputs to PLC, preset, or logger; test signal integrity.
  4. Proving & calibration: Run prover can or master meter tests and adjust calibration wheel or K-factor until within tolerance.
  5. Documentation: Issue calibration certificate, apply seals, and schedule verification intervals.

Integration & Data Services

  • Pulse/analog outputs feed batching PLCs, ERP fuel accounting, or telemetry dashboards.
  • Ticket printers (CE-113 + Setstop counter) generate on-site receipts for every batch.
  • Remote monitoring kits stream totals via GSM/LoRa for unmanned depots.

FAQs

Can these meters handle biodiesel or blended fuels?

Yes—specify seal material (Buna/Viton) and meter selection (PD or helical) based on viscosity.

What accuracy should I expect?

Standard turbine/PD meters hold ±0.5 %; CE-113 and CE-212 deliver ±0.2 % when proved.

Do you supply outputs for automation?

CE-111, CE-113, CE-210, and CE-212 provide pulse or 4–20 mA signals for PLC/SCADA connections.

How often do they need calibration?

Prove after installation and annually (or per Legal Metrology) for custody measurement.

Is there a mobile solution?

CE-113 can be trolley-mounted with printer, hose, and preset hardware for bowser or yard deployments.

Ready for a Fuel Flow Meter Recommendation?

Request a configuration review with fluid properties, min/max flow, and output requirements.
