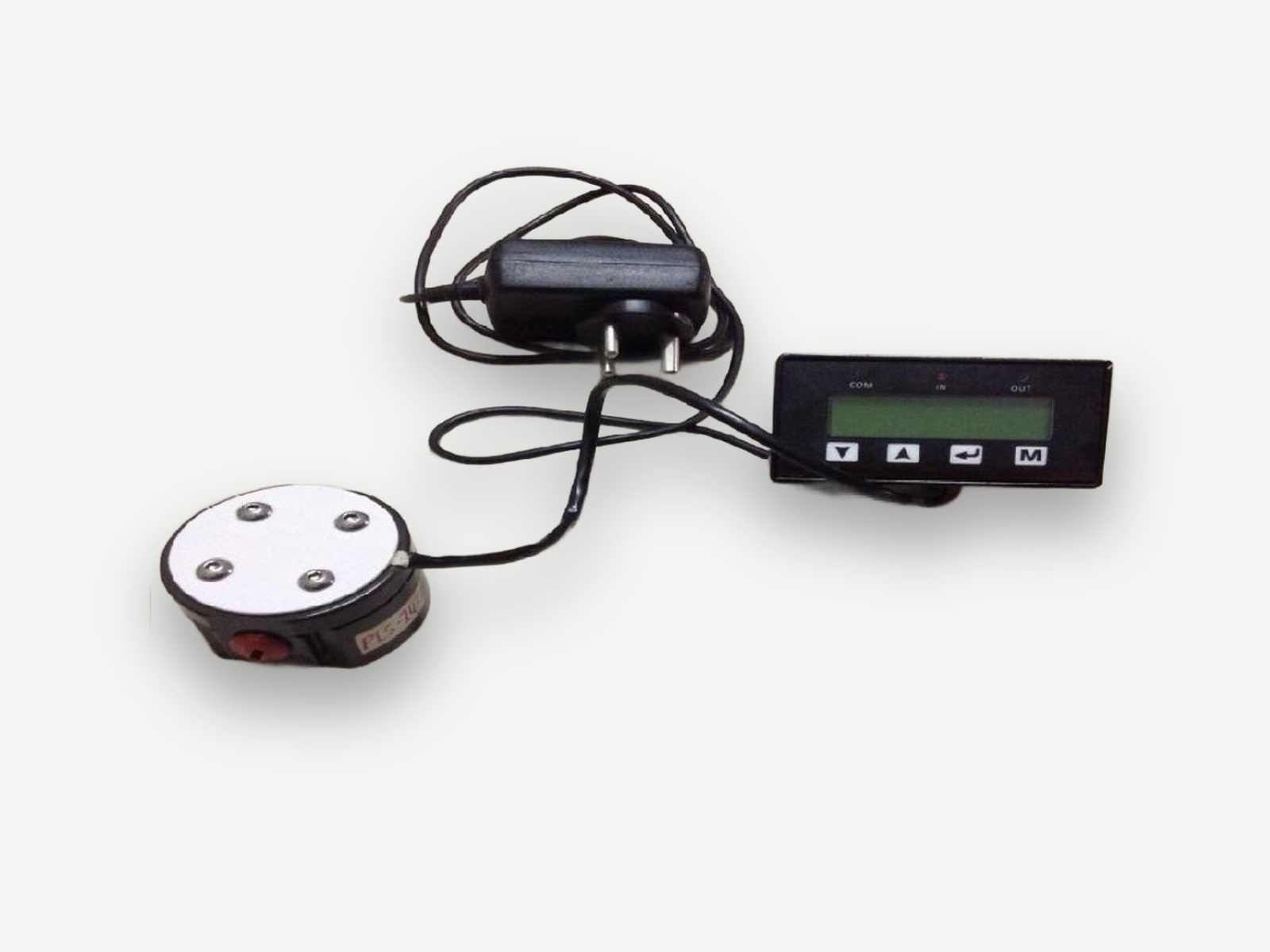

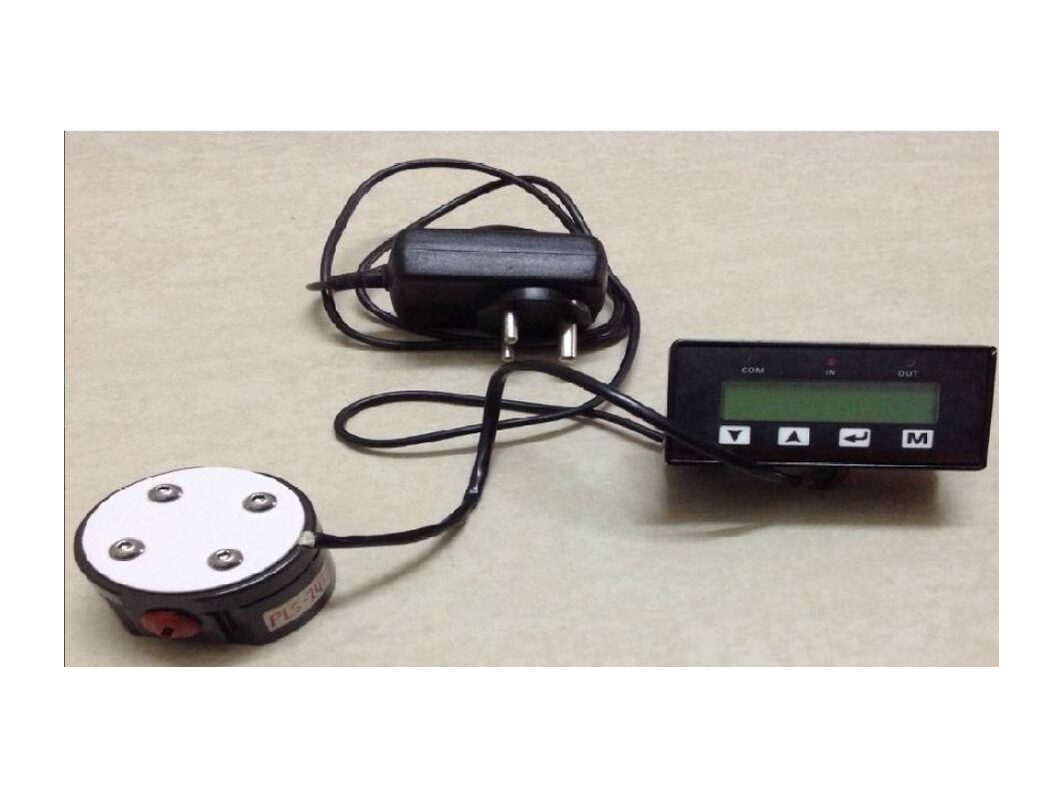

CE-132 Ink Flow Meter
CE-132 flow meter for metered fluid handling.
- Maximum Working Pressure
- 10MPa
- Power Voltage
- 5-24 V DC
- Connection
- Thread (M/F) or flange
Need a quote for CE-132?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-132 Ink Flow Meter is a flow meter manufactured by Chintan Engineers for handling diesel and similar fluids.
On the catalog datasheet, it is rated for a working pressure of 10 MPa.
The connection size is Thread (M/F) or flange.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Maximum working pressure | 10MPa |
| Ambient humidity | 35-85% RH |
| Viscosity range | 0.612-5.35mm2/s |
| Fluid & ambient temperature | -40 to 80°C |
| Mechanical | |
| Enclosure | Aluminium anodize / SS-304 / SS-316 |
| Rotor | Aluminium anodize / SS-316 / PPS |
| O-ring | NBR / Viton |
| Shaft | Hard Stainless Steel-316 |
| Connection | Thread (M/F) or flange |
| Electrical | |
| Power voltage | 5-24V DC |
| Output signal | NPN |
| High electric level | less than 4.5 VDC (input voltage 5 VDC) |
| Low electric level | higher than 0.5 VDC (input voltage 5 VDC) |
Source: the CE-132 catalogue datasheet. Details may change with ongoing development.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Industrial Plants
Process plants need to meter and batch fluids other than diesel: oils, chemicals, LPG and other liquids, often into a specific preset volume for a batch…
Recommended CE-136 CE-210
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The source catalog does not state a single accuracy figure for this model; refer to the specification table for the values it does list, or ask our team for the current test report.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
The catalog datasheet does not give a single flow-range figure for this model; see the specification table for the closest listed values.
What fluids is it compatible with?
It is built for diesel and similar fuels; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
NPN, per the catalog.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
