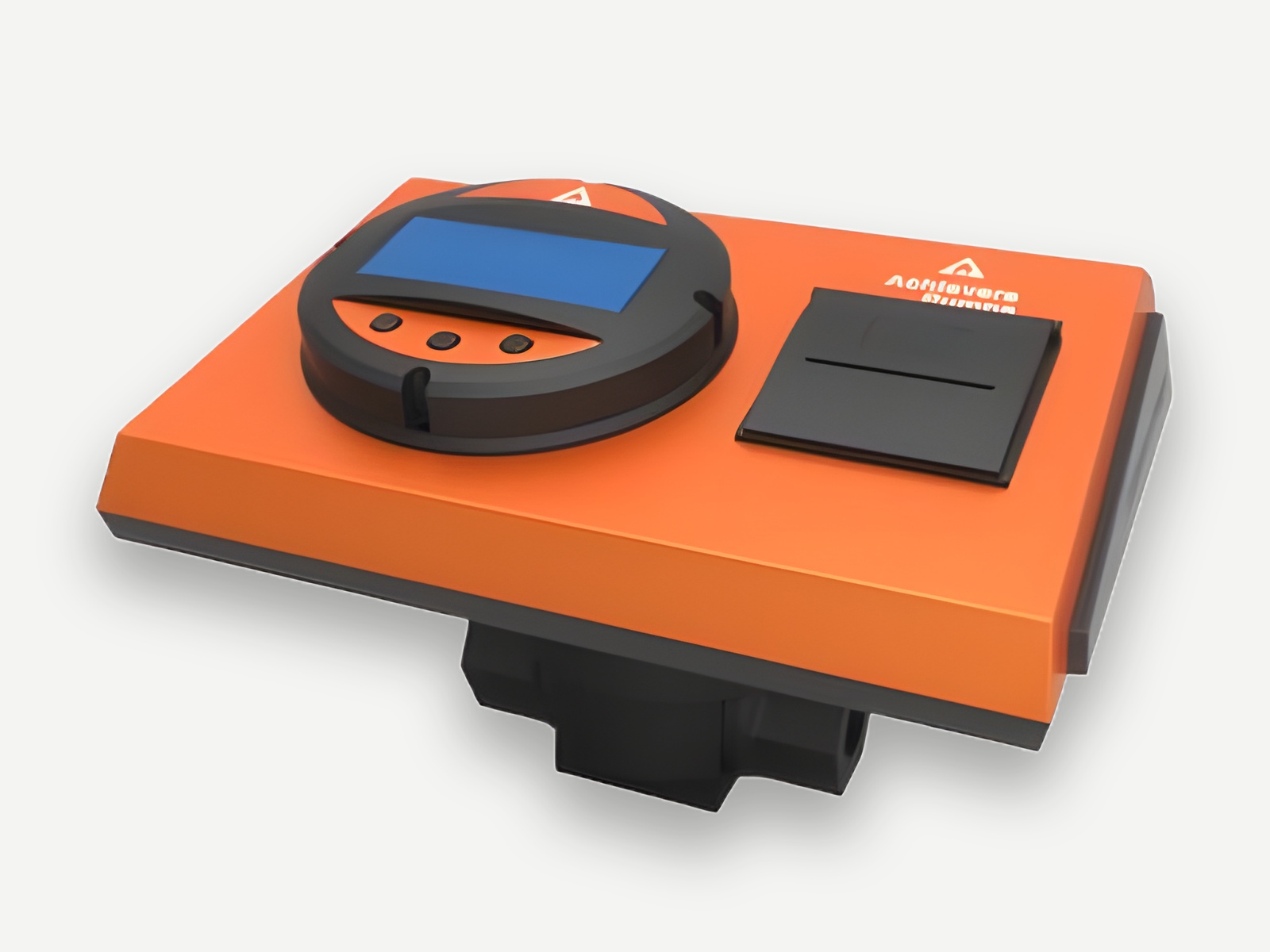

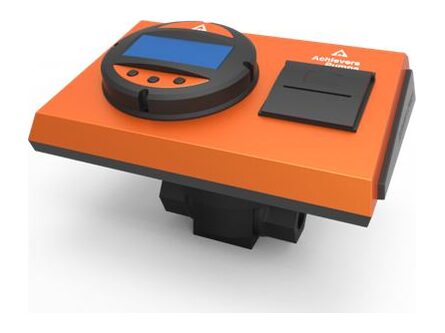

CE-25 Smart Flow Meter
CE-25 flow meter with a flow range of 20-120 lpm.
- Flow Range
- 20-120lpm
- Accuracy
- +0.5%
- Max Working Pressure
- 3.4Mpa
Need a quote for CE-25?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-25 Smart Flow Meter is a flow meter manufactured by Chintan Engineers for handling diesel and similar fluids.
On the catalog datasheet, its flow range is 20-120 lpm, and accuracy is rated at +0.5 %, and it is rated for a working pressure of 3.4 Mpa.
The connection size is 25mm / 1 inch.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Flow range | 20-120lpm |
| Accuracy | +0.5% |
| Max working pressure | 3.4Mpa |
| Max viscosity | 1000CPS |
| Mechanical | |
| Inlet and outlet | 25mm / 1inch |
Source: the CE-25 catalogue datasheet. Details may change with ongoing development.
Options
Variants and options
| Code | What it changes |
|---|---|
| CE-40 | 40mm / 1.5" size, 25-250 lpm |
| CE-50 | 50mm / 2" size, 30-300 lpm |
Hose lengths, mountings and counter options are configured at order.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Industrial Plants
Process plants need to meter and batch fluids other than diesel: oils, chemicals, LPG and other liquids, often into a specific preset volume for a batch…
Recommended CE-136 CE-210
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The catalog rates it at +0.5 % accuracy. Repeatability, where listed, is in the specification table.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
20-120 lpm, as listed on the catalog datasheet.
What fluids is it compatible with?
It is built for diesel and similar fuels; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
