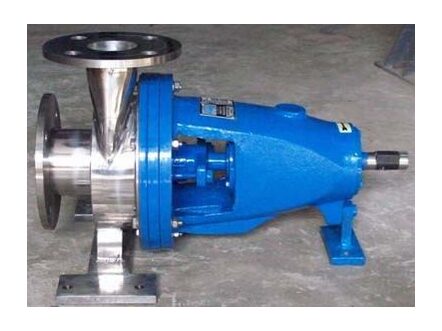

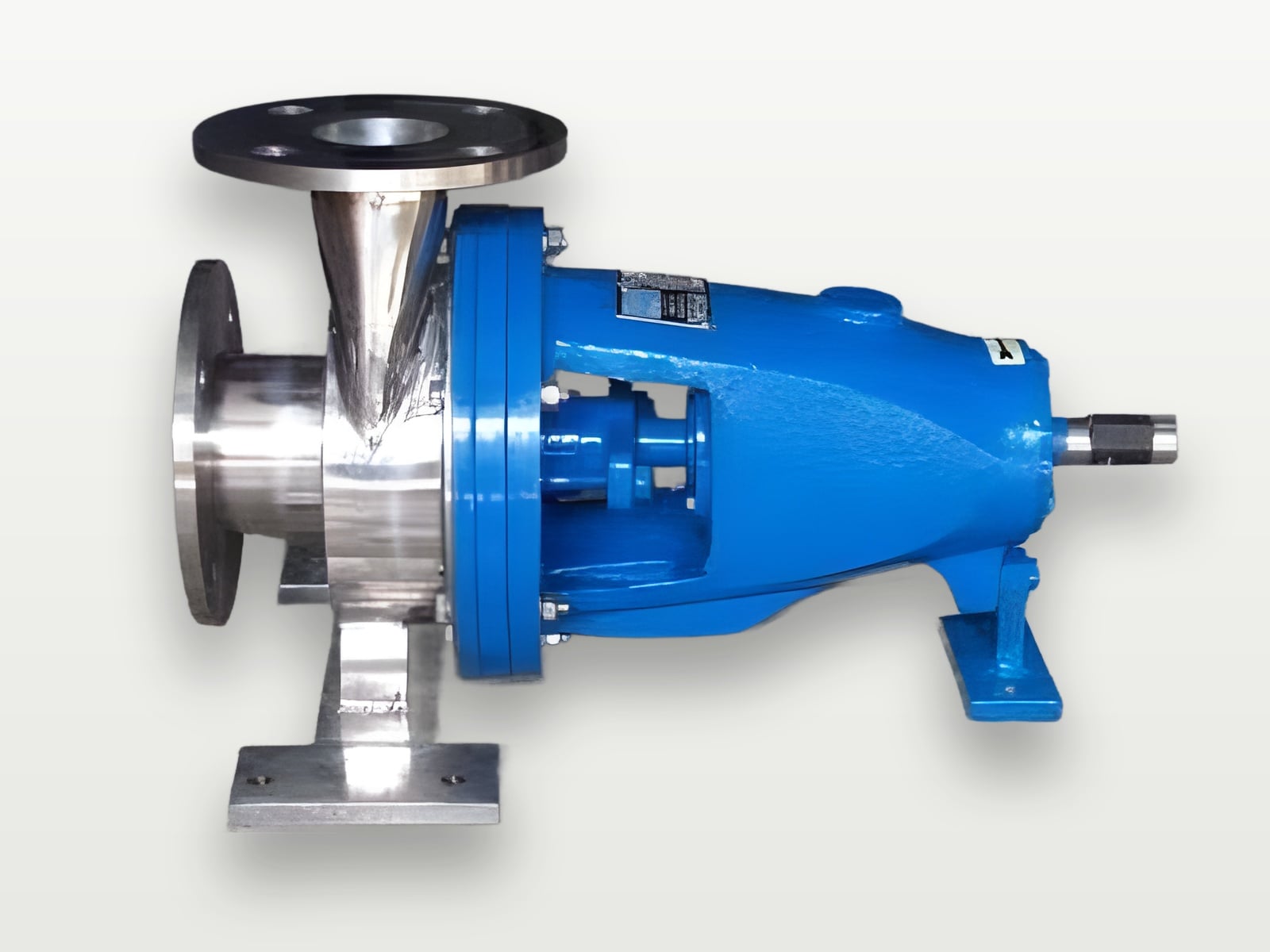

CE-BPO Series Back Pull-Out Pump
CE-BPO pump for metered fluid handling.
- Delivery Size
- up to 250 mm
- Design
- back pull-out
- Serviceability
- rotating assembly removable without disturbing pipework
Need a quote for CE-BPO?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-BPO Series Back Pull-Out Pump is a pump manufactured by Chintan Engineers for handling diesel and similar fluids.
Detailed performance figures for this model are listed in the specification table below.
The connection size is up to 250 mm.
The catalog references the following approvals or standards: ISO.
Data
Specifications
| Performance | |
|---|---|
| Capacity | up to 990m3/hr |
| Head | up to 120m |
| Mechanical | |
| Design | back pull-out |
| Serviceability | rotating assembly removable without disturbing pipework |
| Corrosion allowance | more than 3mm (cast iron) |
| Construction | one-piece casing |
| Delivery size | up to 250mm |
| Speed | 500 to 3600RPM |
Source: the CE-BPO catalogue datasheet. Details may change with ongoing development.
Compliance
Approvals and compliance
The catalogue datasheet references the following standards and approvals. Ask us for the current certificate before specifying this model for a regulated application.
ISO
Referenced on the datasheetCertificate on request
Where it works
Applications
Industrial Plants
Process plants need to meter and batch fluids other than diesel: oils, chemicals, LPG and other liquids, often into a specific preset volume for a batch…
Recommended CE-136 CE-210
Marine & Ports
Marine and port fuel and fluid transfer deals with corrosive, salt-laden environments, so wetted parts in stainless steel or corrosion-resistant materials matter more than on land.
Recommended CE-144 CE-BPO
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The source catalog does not state a single accuracy figure for this model; refer to the specification table for the values it does list, or ask our team for the current test report.
Is this model PESO or Weights & Measures approved?
Yes, per the catalog: ISO.
What flow range does it cover?
The catalog datasheet does not give a single flow-range figure for this model; see the specification table for the closest listed values.
What fluids is it compatible with?
It is built for diesel and similar fuels; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
