Industrial Plants
Process plants need to meter and batch fluids other than diesel: oils, chemicals, LPG and other liquids, often into a specific preset volume for a batch…
Recommended CE-136 CE-210
CE-PP Datasheet (PDF)

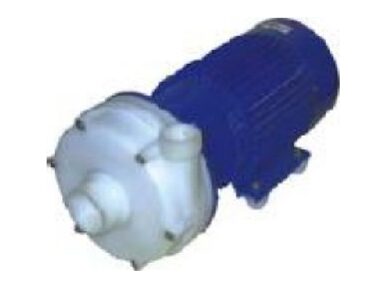

CE-PP Polypropylene Pump
CE-PP polypropylene pump for metered fluid handling.
- Casing Material
- polypropylene, injection molded, single piece
- Impeller
- semi-open, UHMW, low NPSH
- Shaft Material
- SS-304/316, protected by Alloy-20
Need a quote for CE-PP?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-PP Polypropylene Pump is a polypropylene pump manufactured by Chintan Engineers for handling corrosive acids, alkalis and effluent.
Detailed performance figures for this model are listed in the specification table below.
Wetted or body parts are polypropylene, injection molded, single piece.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Test speed | 2900 / 1450RPM |
| Test frequency | 50Hz |
| Mechanical | |
| Casing material | polypropylene, injection molded, single piece |
| Impeller | semi-open, UHMW, low NPSH |
| Shaft material | SS-304/316, protected by Alloy-20 |
| Shaft sleeve | alumina-filled PTFE or ceramic sleeve |
| Stuffing box | UHMW, for gland packing or PTFE bellow mechanical seal |
Source: the CE-PP catalogue datasheet. Details may change with ongoing development.
Options
Variants and options
| Code | What it changes |
|---|---|
| Horizontal PP Pump | horizontal monobloc/bare configuration |
| Vertical Glandless Pump | vertical, glandless configuration |
Hose lengths, mountings and counter options are configured at order.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The source catalog does not state a single accuracy figure for this model; refer to the specification table for the values it does list, or ask our team for the current test report.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
The catalog datasheet does not give a single flow-range figure for this model; see the specification table for the closest listed values.
What fluids is it compatible with?
It is built for corrosive acids, alkalis and effluent; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
