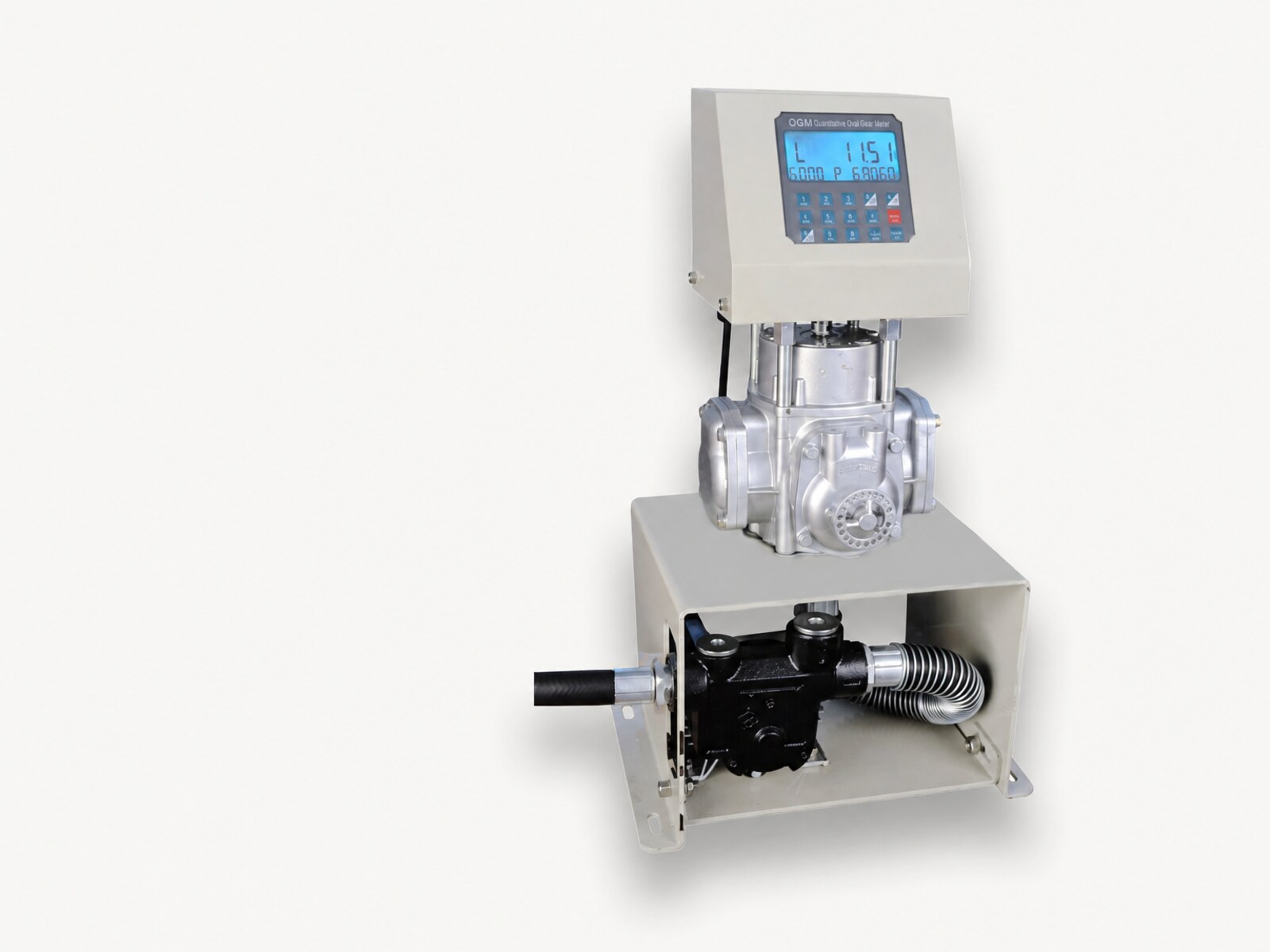

CE-203 Preset Dispenser with Piston Flow Meter
CE-203 diesel dispenser with a flow range of 60 LPM 0.5%.
- Flowrate Repeatable Tolerance
- 60 LPM 0.5%
- Accuracy
- ±0.2%
- Volume
- 9 digits,
Need a quote for CE-203?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-203 Preset Dispenser with Piston Flow Meter is a diesel dispenser manufactured by Chintan Engineers for handling diesel.
On the catalog datasheet, its flow range is 60 LPM 0.5%, and accuracy is rated at ±0.2%.
Mechanical and electrical details are listed in the specification table below.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Flowrate Repeatable Tolerance | 60 LPM 0.5% |
| Accuracy | ±0.2% |
| General | |
| Volume | 9 digits, |
| Amount | 11 digits |
| Adjustable Min. Volume | 0.05 |
| Application Medium | Diesel, Oil , Kerosene |
| Totalizer | Volume: 9 digits, Amount: 11 digits |
Source: the CE-203 catalogue datasheet. Details may change with ongoing development.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Diesel Generator Sets
Generator fuel is easy to lose track of between refills, and unmetered day tanks make pilferage and over-consumption hard to catch. Metering fuel in and monitoring…
Recommended CE-121 CE-172
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The catalog rates it at ±0.2% accuracy. Repeatability, where listed, is in the specification table.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
60 LPM 0.5%, as listed on the catalog datasheet.
What fluids is it compatible with?
It is built for diesel; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
