Captive Fuel Stations
A captive (in-house, non-retail) fuel station needs accurate, auditable dispensing without the certification overhead of a public retail pump, usually with printed receipts for internal cost…
Recommended CE-206 CE-201
CE-202 Datasheet (PDF)

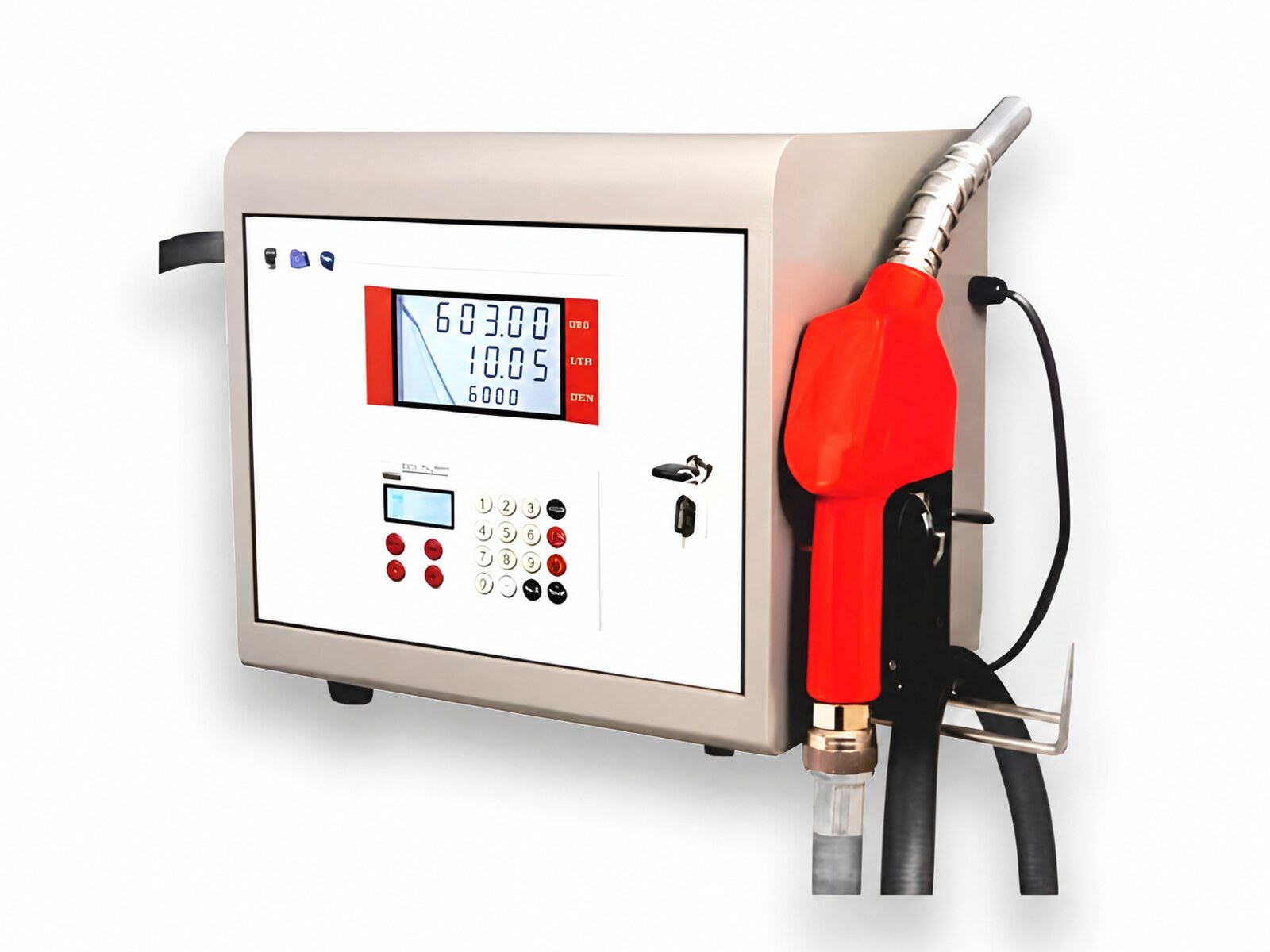

CE-202 Digital Dispenser
CE-202 diesel dispenser with a flow range of 20 - 60 lpm.
- Flow Rate
- 20 - 60lpm
- Power
- 12V DC OR 24V DC
- Temperature
- -20 to +60
Need a quote for CE-202?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-202 Digital Dispenser is a diesel dispenser manufactured by Chintan Engineers for handling diesel.
On the catalog datasheet, its flow range is 20 – 60 lpm.
Mechanical and electrical details are listed in the specification table below.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Flow Rate | 20 - 60lpm |
| Temperature | -20 to +60 |
| Price Range | ±0.5 % 0 - 9999999999.99 |
| Electrical | |
| Power | 12V DC OR 24V DC |
| General | |
| Application Media | HFO,LFO,Engine Oil, Edible Oil |
Source: the CE-202 catalogue datasheet. Details may change with ongoing development.
Options
Variants and options
| Code | What it changes |
|---|---|
| CE-202-OIL | same platform set up for oil rather than diesel/gasoline |
Hose lengths, mountings and counter options are configured at order.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Diesel Generator Sets
Generator fuel is easy to lose track of between refills, and unmetered day tanks make pilferage and over-consumption hard to catch. Metering fuel in and monitoring…
Recommended CE-121 CE-172
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The source catalog does not state a single accuracy figure for this model; refer to the specification table for the values it does list, or ask our team for the current test report.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
20 - 60 lpm, as listed on the catalog datasheet.
What fluids is it compatible with?
The catalog lists HFO,LFO,Engine Oil, Edible Oil as the applicable media.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
