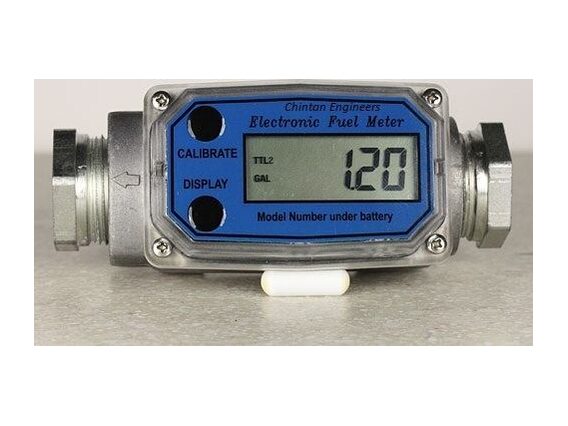

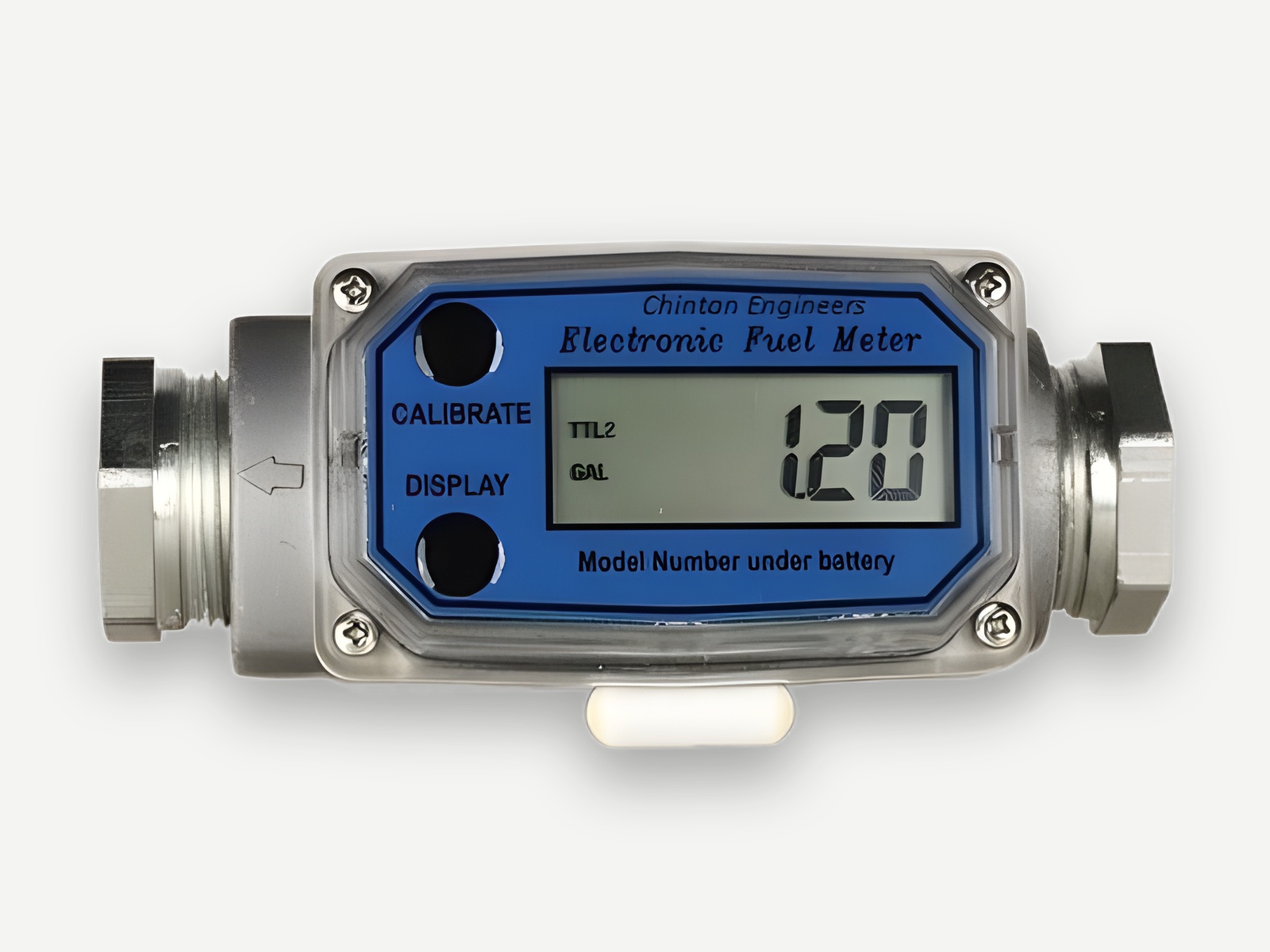

CE-103 Diesel Flow Meter
CE-103 diesel flow meter with a flow range of 18.9-190 L/min.
- Flow Rate
- 18.9-190L/min
- Accuracy
- ±1.5%
- Inlet Size
- 1 (BSPT/NPT) inch
Need a quote for CE-103?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-103 Diesel Flow Meter is a diesel flow meter manufactured by Chintan Engineers for handling diesel.
On the catalog datasheet, its flow range is 18.9-190 L/min, and accuracy is rated at ±1.5 %.
The connection size is 1 (BSPT/NPT) inch.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Flow rate | 18.9-190L/min |
| Accuracy | ±1.5% |
| Flow rate (1.5" size) | 38.0-380L/min |
| Mechanical | |
| Inlet size | 1 (BSPT/NPT)inch |
| Electrical | |
| Battery life | approximately 9000hours |
Source: the CE-103 catalogue datasheet. Details may change with ongoing development.
Options
Variants and options
| Code | What it changes |
|---|---|
| CE-102-C | 3/4" BSPT/NPT, 7.6-75.7 L/min, ±1.5% |
Hose lengths, mountings and counter options are configured at order.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Construction & Mining
Site equipment runs on diesel delivered from bowsers, drums and mobile tanks, often in dusty or wet conditions. Pumps and dispensers here need to handle solids-laden…
Recommended CE-MP CE-60A
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The catalog rates it at ±1.5 % accuracy. Repeatability, where listed, is in the specification table.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
18.9-190 L/min, as listed on the catalog datasheet.
What fluids is it compatible with?
It is built for diesel; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
