Construction & Mining
Site equipment runs on diesel delivered from bowsers, drums and mobile tanks, often in dusty or wet conditions. Pumps and dispensers here need to handle solids-laden…
Recommended CE-MP CE-60A
CE-40DC Datasheet (PDF)

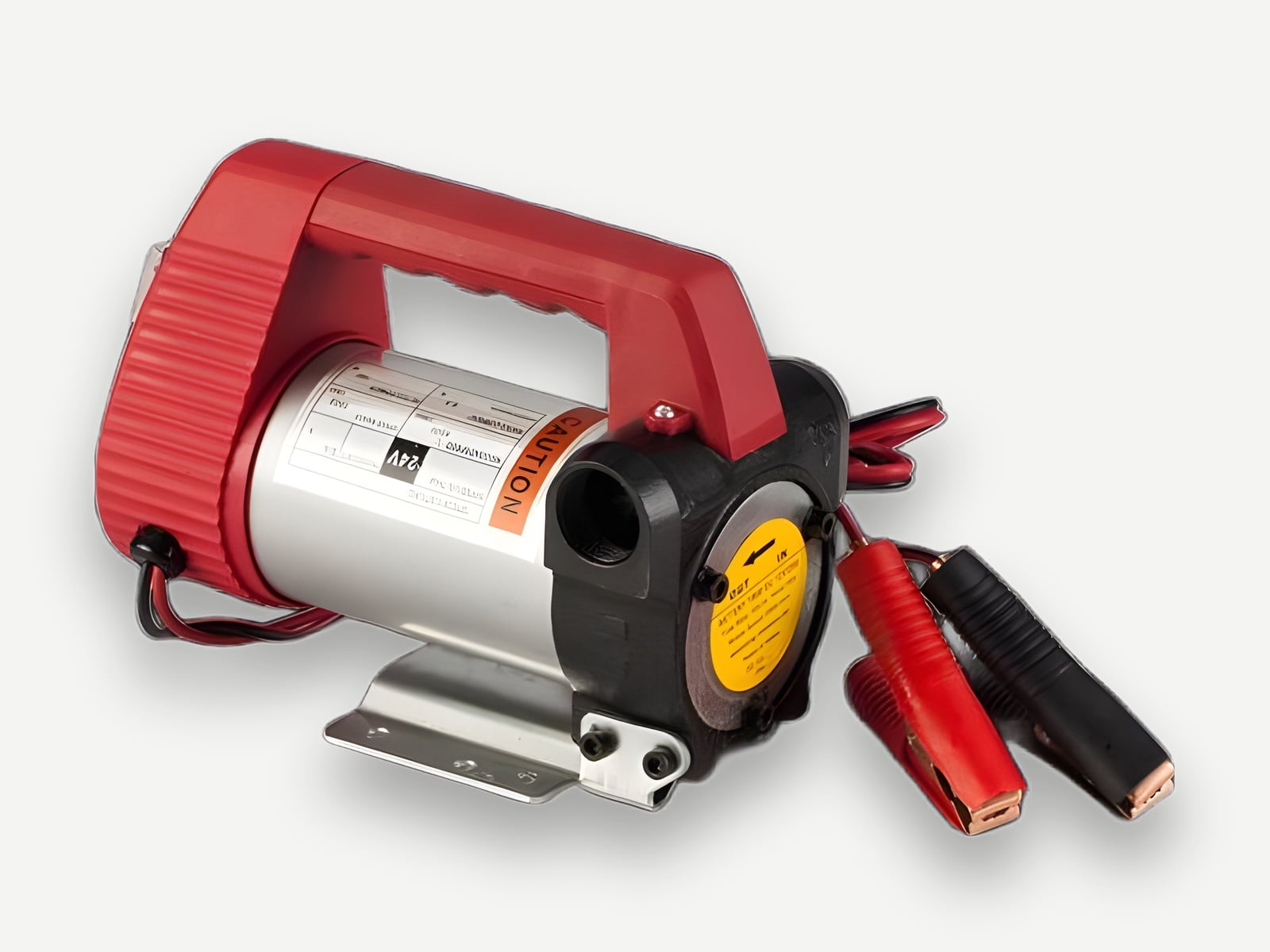

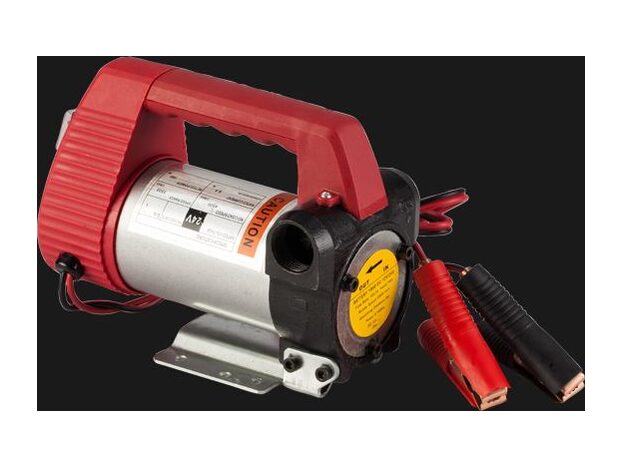

CE-40DC DC Diesel Transfer Pump
CE-40DC pump with a flow range of 40 L/min.
- Flow Rate
- 40L/min
- Current Draw
- 22A at 12V, 12A at 24V
- Inlet/Outlet
- 3/4inch
Need a quote for CE-40DC?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-40DC DC Diesel Transfer Pump is a pump manufactured by Chintan Engineers for handling diesel and similar fluids.
On the catalog datasheet, its flow range is 40 L/min.
Wetted or body parts are cast iron, anti-corrosion painted The connection size is 3/4 inch.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Work Cycles. Flowrate | 40L/MIN 22A(12V),12A(24V) 2800RPM |
| Flow rate | 40L/min |
| Mechanical | |
| Inlet/outlet | 3/4inch |
| Body material | cast iron, anti-corrosion painted |
| Applicable media | diesel, kerosene |
| Electrical | |
| Input/Output | 1 |
| Inch Current | 44A/12V,21A/24V |
| Current draw | 22A at 12V, 12A at 24V |
| General | |
| Usage | DIESEL,KEROSENE |
| In/Out Let | 3/4" |
| G.W | 3.5KGS |
| N.W | 3KGS |
Source: the CE-40DC catalogue datasheet. Details may change with ongoing development.
Options
Variants and options
| Code | What it changes |
|---|---|
| CE-70-A-DC | 70 L/min, 12V/24V, 3/4" inlet/outlet |
| CE-80-DC | 80 L/min, 12V (44A) or 24V (21A) |
Hose lengths, mountings and counter options are configured at order.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Industrial Plants
Process plants need to meter and batch fluids other than diesel: oils, chemicals, LPG and other liquids, often into a specific preset volume for a batch…
Recommended CE-136 CE-210
Marine & Ports
Marine and port fuel and fluid transfer deals with corrosive, salt-laden environments, so wetted parts in stainless steel or corrosion-resistant materials matter more than on land.
Recommended CE-144 CE-BPO
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The source catalog does not state a single accuracy figure for this model; refer to the specification table for the values it does list, or ask our team for the current test report.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
40 L/min, as listed on the catalog datasheet.
What fluids is it compatible with?
The catalog lists diesel, kerosene as the applicable media.
What output or display options are available?
1, per the catalog.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
