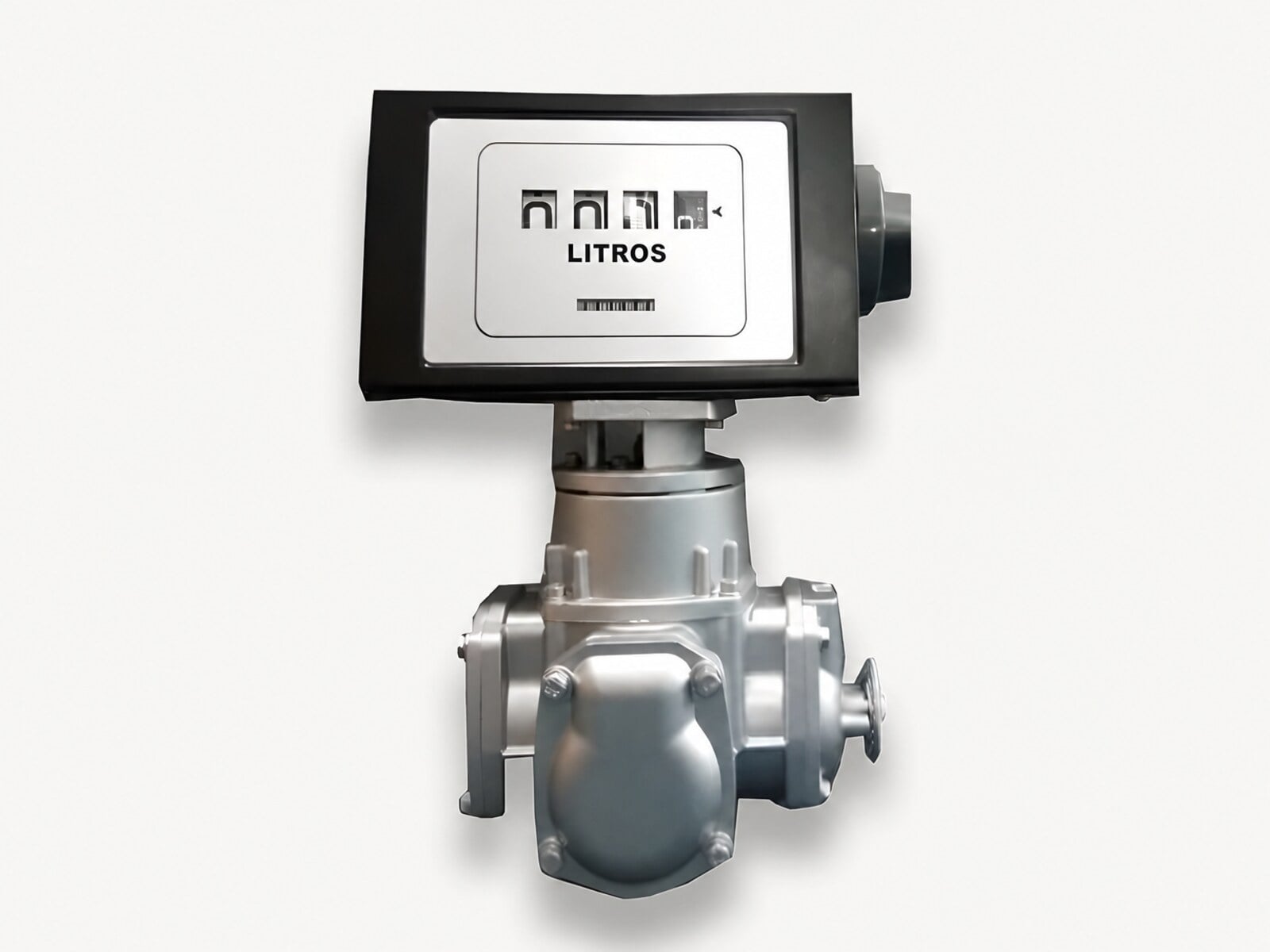

CE-212 Piston Type Diesel Flow Meter
CE-212 diesel flow meter with a flow range of 5 L/min - 60.
- Flow Range
- 5 L/min - 60
- Excellent Accuracy
- ±0.2% with high flow through-put
- Working Pressure
- 0.12Mpa-0.3Mpa
Need a quote for CE-212?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-212 Piston Type Diesel Flow Meter is a diesel flow meter manufactured by Chintan Engineers for handling diesel.
On the catalog datasheet, its flow range is 5 L/min – 60, and accuracy is rated at ±0.2% with high flow through-put, and it is rated for a working pressure of 0.12Mpa-0.3Mpa.
Wetted or body parts are Aluminium (Spray Painted).
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Discharge Rate Of Each Revolution | 0.5L |
| Flow Range | 5 L/min - 60 |
| Adjusting Range Of Piston Quantity | 29.86mm |
| Working Pressure | 0.12Mpa-0.3Mpa |
| Excellent Accuracy | ±0.2% with high flow through-put |
| Mechanical | |
| Body | Aluminium (Spray Painted) |
| Off-Setting Of Crankshaft | 14.93mm |
| General | |
| Diameter Of Rotary Bar | 9mm |
| Diameter Of Cylinder Cover | 72.4mm |
| Environmental Condition | -40~+70 |
| Travel Of Piston | 29.80-31.38mm |
| Repeatablilty | ±0.05% |
Source: the CE-212 catalogue datasheet. Details may change with ongoing development.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Construction & Mining
Site equipment runs on diesel delivered from bowsers, drums and mobile tanks, often in dusty or wet conditions. Pumps and dispensers here need to handle solids-laden…
Recommended CE-MP CE-60A
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The catalog rates it at ±0.2% with high flow through-put accuracy. Repeatability, where listed, is in the specification table.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
5 L/min - 60, as listed on the catalog datasheet.
What fluids is it compatible with?
It is built for diesel; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
