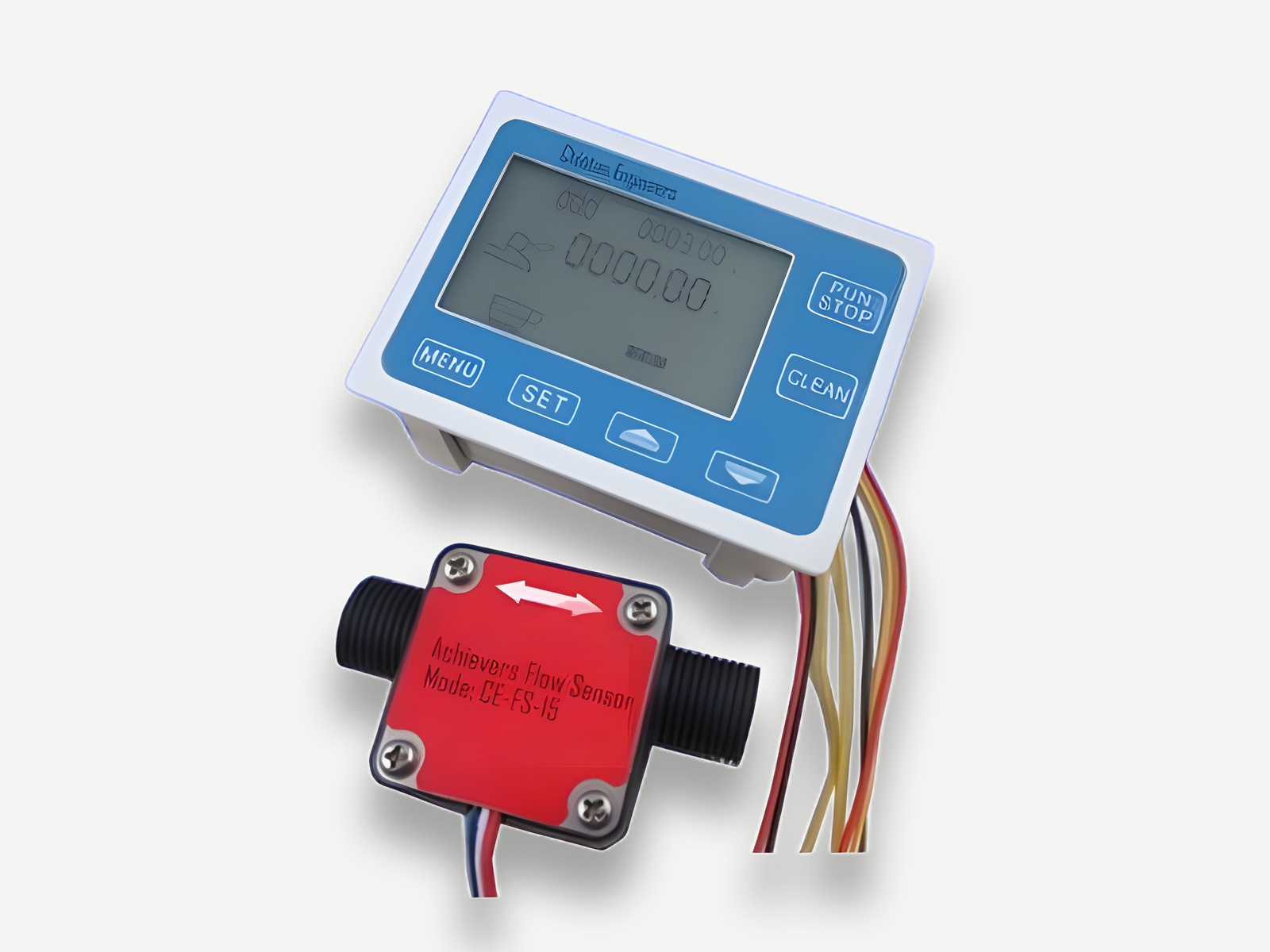

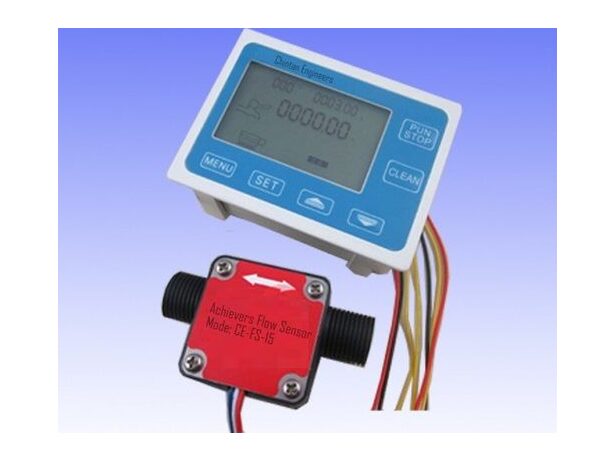

CE-131 Diesel Flow Meter
CE-131 diesel flow meter with a flow range of 1-10 L/min.
- Flow Range
- 1-10L/min
- Accuracy
- ±0.5%
- Lcd Size
- 3",BUILT-IN BACKLIGHT.
Need a quote for CE-131?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-131 Diesel Flow Meter is a diesel flow meter manufactured by Chintan Engineers for handling diesel.
On the catalog datasheet, its flow range is 1-10 L/min, and accuracy is rated at ±0.5 %.
The connection size is 3",BUILT-IN BACKLIGHT..
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Flow Range | 1-10L/MIN |
| Flow Sensor Working Voltage | 3-12V |
| Accuracy | ±0.5% |
| Flow range | 1-10L/min |
| Accuracy | ±0.5% |
| Mechanical | |
| Lcd Size | 3",BUILT-IN BACKLIGHT |
| Controller Case Size | 103X77X35MM,CONTROLLER |
| Cutout Size | 98X73MM |
| Electrical | |
| Solenoid Valves Working Voltage | DC12V/0.3-0.5A(NC),DON'T INCLUDE |
| Working voltage | DC24V ±8V1A |
| Display | 3" LCD with backlight |
| General | |
| Working Volt | DC24V±8V/1A |
| Viewing Angle | 0-120 DEGREE |
Source: the CE-131 catalogue datasheet. Details may change with ongoing development.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Construction & Mining
Site equipment runs on diesel delivered from bowsers, drums and mobile tanks, often in dusty or wet conditions. Pumps and dispensers here need to handle solids-laden…
Recommended CE-MP CE-60A
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The catalog rates it at ±0.5 % accuracy. Repeatability, where listed, is in the specification table.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
1-10 L/min, as listed on the catalog datasheet.
What fluids is it compatible with?
It is built for diesel; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
3" LCD with backlight, per the catalog.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
