Industrial Plants
Process plants need to meter and batch fluids other than diesel: oils, chemicals, LPG and other liquids, often into a specific preset volume for a batch…
Recommended CE-136 CE-210
CE-SS Datasheet (PDF)

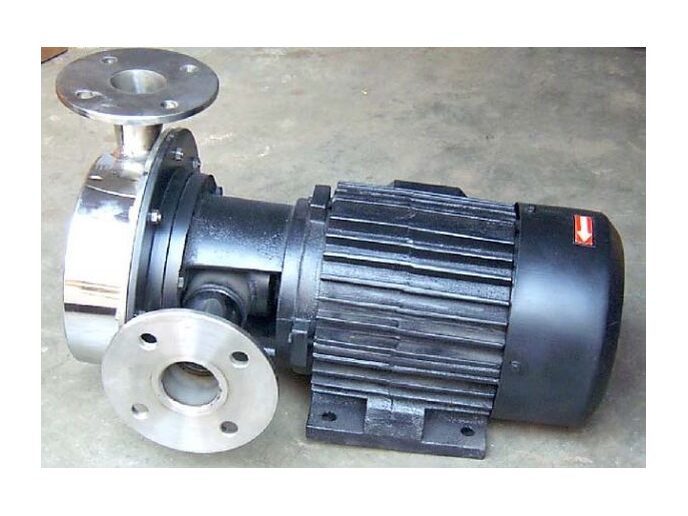

CE Series Stainless Steel Centrifugal Pump
CE-SS stainless steel centrifugal pump for metered fluid handling.
- Power Range
- 0.25-30HP
- Head
- up to 90 m
- Capacity
- up to 3000 LPM
Need a quote for CE-SS?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE Series Stainless Steel Centrifugal Pump is a stainless steel centrifugal pump manufactured by Chintan Engineers for handling milk, juice, water, chemicals and other process fluids.
Detailed performance figures for this model are listed in the specification table below.
Wetted or body parts are SS 304 / 316 / 304L / 316L.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Power range | 0.25-30HP |
| Head | up to 90m |
| Capacity | up to 3000LPM |
| Viscosity handling | up to 1500centipoise |
| Vacuum tolerance | up to 720mm Hg |
| Mechanical | |
| Material of construction | SS 304 / 316 / 304L / 316L |
| Seal | silicon carbide vs silicon carbide, or as per requirement |
| Design | centrifugal, monobloc or bare (coupled) |
Source: the CE-SS catalogue datasheet. Details may change with ongoing development.
Options
Variants and options
| Code | What it changes |
|---|---|
| Monobloc (nipple connection) | standard monobloc pump, nipple connection |
| Monobloc (flameproof motor) | flameproof motor, nipple or flange connection |
| Bare pump | bare pump for coupling to a separate driver |
| Mini pump | compact mini pump variant |
| Inline fabricated pump | inline fabricated configuration |
| Pump with trolley | mounted on a mobile trolley |
| Self-priming chamber | fitted with a self-priming chamber |
| Back-side suction | back-side suction, for filter press applications |
| Vertical fabricated | vertical, fabricated to customer requirement |
Hose lengths, mountings and counter options are configured at order.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Marine & Ports
Marine and port fuel and fluid transfer deals with corrosive, salt-laden environments, so wetted parts in stainless steel or corrosion-resistant materials matter more than on land.
Recommended CE-144 CE-BPO
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The source catalog does not state a single accuracy figure for this model; refer to the specification table for the values it does list, or ask our team for the current test report.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
The catalog datasheet does not give a single flow-range figure for this model; see the specification table for the closest listed values.
What fluids is it compatible with?
It is built for milk, juice, water, chemicals and other process fluids; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
