Captive Fuel Stations
A captive (in-house, non-retail) fuel station needs accurate, auditable dispensing without the certification overhead of a public retail pump, usually with printed receipts for internal cost…
Recommended CE-206 CE-201
CE-130 Datasheet (PDF)

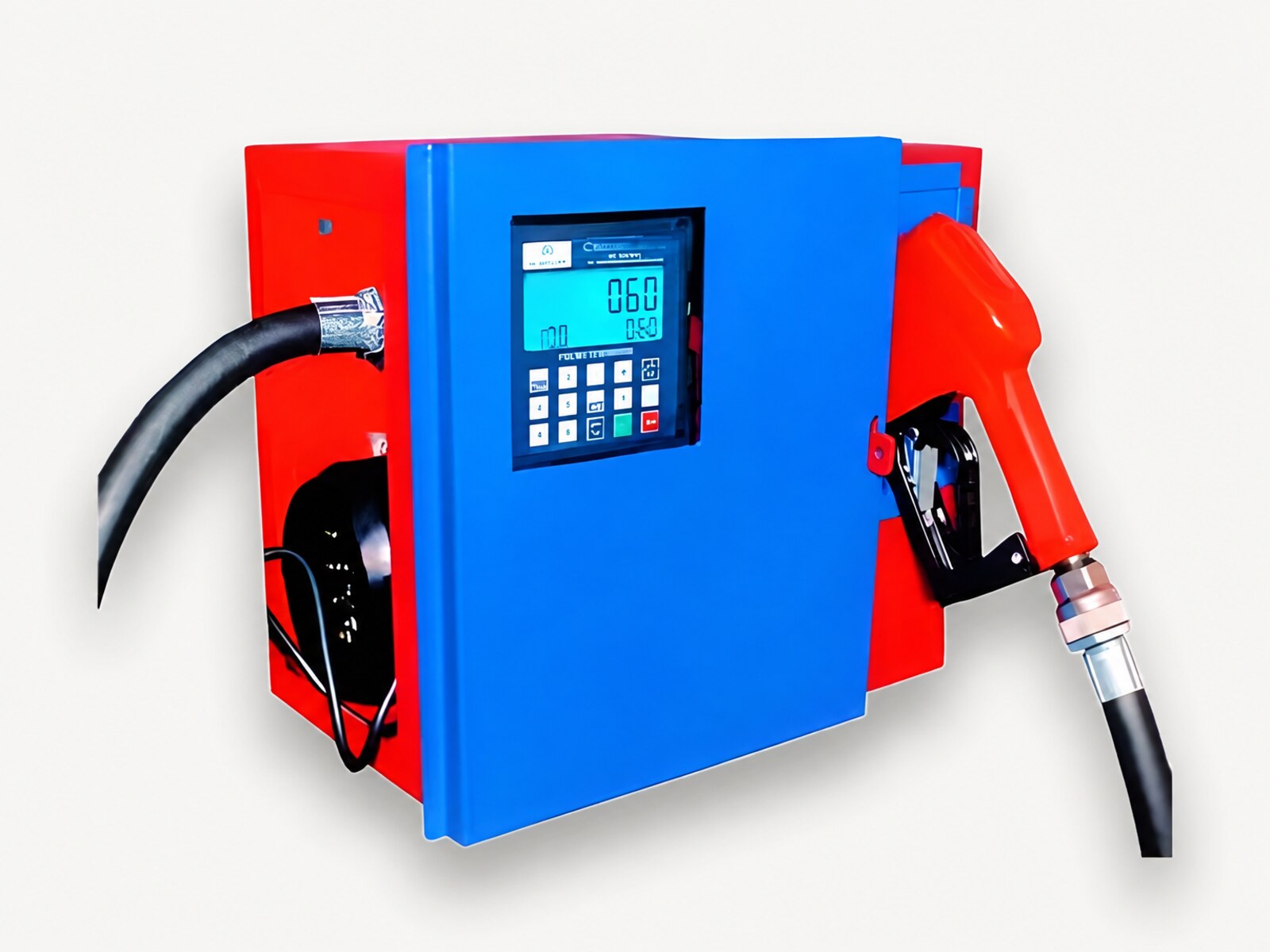

CE-130 Digital Preset Dispenser
CE-130 diesel dispenser with a flow range of 20-60L/min.
- Flow Range
- 20-60L/min
- Accuracy
- ± 0.5%
- Power Options
- DC12V, DC24V, AC220V
Need a quote for CE-130?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-130 Digital Preset Dispenser is a diesel dispenser manufactured by Chintan Engineers for handling diesel.
On the catalog datasheet, its flow range is 20-60L/min, and accuracy is rated at ± 0.5 %.
Mechanical and electrical details are listed in the specification table below.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Flow Range | 20-60L/min |
| Accuracy | ± 0.5% |
| Unit Price Range | 0-99.99 |
| Volume Range | 0-99999.99L |
| Amount Range | 0-999999.99 0 - 9999999999.99 |
| Electrical | |
| Power Options | DC12V, DC24V, AC220V |
| General | |
| Volume | 9 digits, |
| Amount | 11 digits |
| Applica On Media | Flow Range: 20-60L/min |
Source: the CE-130 catalogue datasheet. Details may change with ongoing development.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
Diesel Generator Sets
Generator fuel is easy to lose track of between refills, and unmetered day tanks make pilferage and over-consumption hard to catch. Metering fuel in and monitoring…
Recommended CE-121 CE-172
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The catalog rates it at ± 0.5 % accuracy. Repeatability, where listed, is in the specification table.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
20-60L/min, as listed on the catalog datasheet.
What fluids is it compatible with?
It is built for diesel; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
