Fleet & Vehicle Depots
Depot refuelling for trucks and vehicles needs a metered, repeatable dispense with a printed or logged record, and increasingly a separate line for AdBlue/DEF alongside diesel.
Recommended CE-206 CE-133
CE-130-ADBLUE Datasheet (PDF)

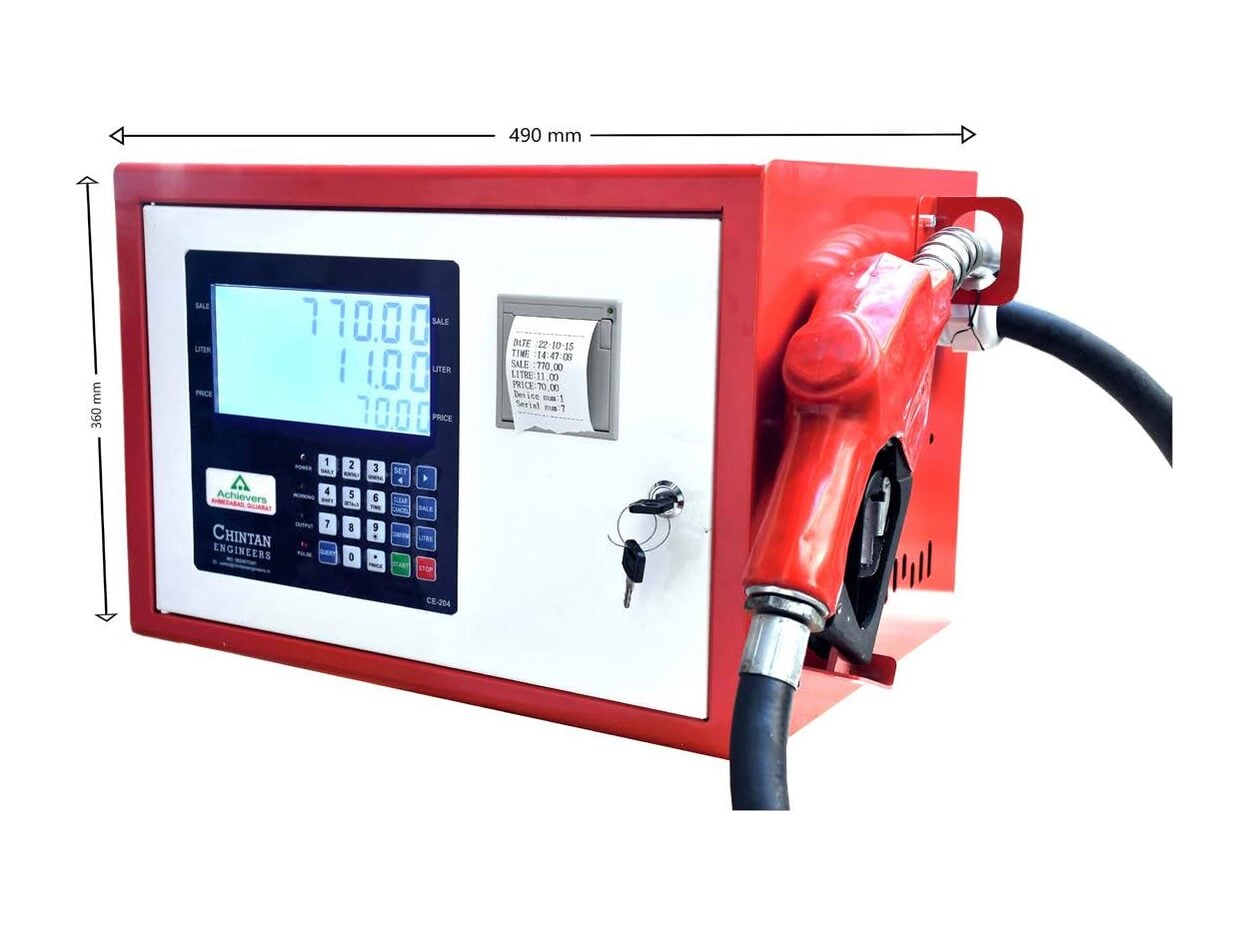

CE-130 Small AdBlue / DEF Dispenser
CE-130-ADBLUE AdBlue/DEF dispenser with a flow range of 15 L/min.
- Flow Range
- 15L/min
- Accuracy
- ± 0.5%
- The Max Working Pressure
- 0.3MPa
Need a quote for CE-130-ADBLUE?
Send the flow range, fluid and quantity; we reply with a price and lead time within one working day.
Summary
Overview
CE-130 Small AdBlue / DEF Dispenser is a AdBlue/DEF dispenser manufactured by Chintan Engineers for handling AdBlue/DEF.
On the catalog datasheet, its flow range is 15 L/min, and accuracy is rated at ± 0.5 %, and it is rated for a working pressure of 0.3MPa.
Mechanical and electrical details are listed in the specification table below.
The source catalog does not list a specific statutory approval for this model; confirm current certification status with our sales team before specifying it for a regulated application.
Data
Specifications
| Performance | |
|---|---|
| Flow Range | 15L/min |
| Accuracy | ± 0.5% |
| Noise Standard | 80dB(A Class) |
| Unit Price Range | 0.01-999.99 |
| Volume Range | 0.01-999999.99 |
| Amount Range | 0.01-9999999999.99 |
| The Max Working Pressure | 0.3MPa |
| Electrical | |
| Memory Capacity | 128kB |
| Power Options | AC 220V |
| General | |
| Humidity | -30 +45 |
| Relative Humidity | 95% |
| Digit Limits | 0.00 - 999999.99 |
| Keyboard | 0 - 9 REGULAR INPUT NUMBERS |
Source: the CE-130-ADBLUE catalogue datasheet. Details may change with ongoing development.
Compliance
Approvals and compliance
The catalogue sheet for this model does not list a statutory approval; it is built for in-house and captive use where a Legal Metrology stamp is not required.
For custody transfer, retail-style records or hazardous areas, ask us which model in the range carries the approval you need.
Where it works
Applications
Captive Fuel Stations
A captive (in-house, non-retail) fuel station needs accurate, auditable dispensing without the certification overhead of a public retail pump, usually with printed receipts for internal cost…
Recommended CE-206 CE-201
Files
Downloads
Enquiry
Request a quote
Five fields. We reply with a price, a lead time and the variant that fits.
Answers
Questions
How accurate is this model?
The catalog rates it at ± 0.5 % accuracy. Repeatability, where listed, is in the specification table.
Is this model PESO or Weights & Measures approved?
The catalog sheet we have does not list a specific PESO or Weights & Measures certificate for this model. Confirm current approval status with us before using it in a regulated retail or custody-transfer setting.
What flow range does it cover?
15 L/min, as listed on the catalog datasheet.
What fluids is it compatible with?
It is built for AdBlue/DEF; check with us before using it on a fluid not covered in the catalog, since seal and body materials are fluid-specific.
What output or display options are available?
The catalog for this model does not detail electrical output options; ask us which display or pulse-output configurations are available.
What is the warranty on this product?
Chintan Engineers offers a standard manufacturer's warranty on this product; ask our sales team for the current warranty period and terms for this model.
See also
Related models
CE-204-ADBLUE
CE-204 AdBlue / DEF Dispenser
CE-204-ADBLUE AdBlue/DEF dispenser with a flow range of 15 to 20 L/min.
- Flow Range
- 15 to 20 L/min
- Accuracy
- ± 0.2 %
- The Max Working Pressure
- 0.3 MPa
