Diesel Dispenser (Diesel Filling Machine)
Chintan Engineers manufactures diesel dispensers engineered for accurate metering, rugged duty cycles, and rapid deployment across fleet depots, construction sites, and mobile bowsers. Mechanical and digital counters, 12/24 V DC or AC motors, auto-shutoff nozzles, and preset/printer options give operators full control over every litre issued.
Need a proposal? Request diesel dispenser specifications and our engineering team will recommend the right configuration.
Quick Specs
- Flow range: 20 – 110 L/min (model dependent)
- Accuracy: ±0.5 % standard; ±0.2 % achievable with CE-113 meter in flameproof builds (CE-124)
- Meters: Mechanical counter (CE-110) or digital positive displacement (CE-111)
- Power: 12 / 24 V DC, 220 V single-phase AC, 440 V three-phase AC
- Inlet/outlet: Typically 25 mm (1"); CE-201 heavy-duty uses 40 mm (1.5")
- Hose & nozzle: 4 m rubber hose with auto shut-off nozzle; hose reel optional
- Support: Site survey, installation, calibration certificates, AMC, and spares stocking across India
Model Comparison
Top seller: CE-204 High Accuracy Digital Dispenser delivers ±0.2 % preset fueling with onboard memory and accounts for nearly 70 % of deployments.
| Model | Flow Range* | Meter Type | Power Options | Highlight Features | Typical Use |
| — | — | — | — | — | — |
| CE-101 Mechanical Dispenser | 40 – 60 L/min | Mechanical (CE-110) | 220 V AC or DC variants | Auto shut-off nozzle, 4 m hose, brass fittings | Workshops, fleet yards, factories |

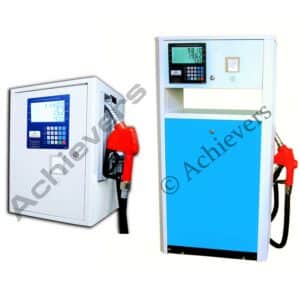

| CE-117 Digital Dispenser | 40 – 60 L/min | Digital PDP (CE-111) | 220 V AC or DC variants | Backlit display, batch & cumulative totalisers, optional printer | Sites needing consumption records |
| CE-204 High Accuracy Digital Dispenser | 20 – 80 L/min | Digital preset controller | 12 / 24 V DC, 220 V AC | ±0.2 % accuracy, preset by volume/amount, 365-day transaction memory, optional receipt printer | Fleet depots needing auditable fueling |
| CE-124 Flameproof Dispenser | 40 – 60 L/min | Mechanical / Digital | 220 / 440 V AC | Flameproof (Ex) motor, ±0.2 % accuracy, rugged enclosure | Hazardous zones, petrochemical sites |
| CE-130 Preset / Mobile Dispenser | 20 – 60 L/min | Digital preset controller | 12 / 24 V DC, 220 V AC | CPU-based preset, vehicle/trolley mounting, telemetry-ready | Mobile bowsers, remote projects |
| CE-201 Heavy-Duty Dispenser | Up to 110 L/min | Mechanical oval gear | 440 V AC (3 Φ) | 1.2 kW rotary vane pump, high throughput, 1.5" inlet/outlet | High duty-cycle depots |
<small>* Verify exact flow, power, and accessory options during quotation; customisations available.</small>
Why Fleets Choose Chintan Engineers
- Precise metering: Factory-calibrated PDP meters deliver ±0.5 % accuracy; CE-204 and flameproof builds reach ±0.2 % for stringent Legal Metrology requirements.
- Built for Indian conditions: Weather-proof cabinets, industrial-grade rotary vane pumps, and locally stocked spares minimise downtime.
- Flexible power & mounting: DC-powered mobile kits for bowsers, AC-powered stationary dispensers for depots, skid or wall mounting options.
- Safety-first design: Auto shut-off nozzles, inline filtration, grounding guidance, and optional flameproof motors.
- Digital accountability: Preset controllers with printers, pulse outputs for SCADA/ERP, and compatibility with remote monitoring (CE-216).
- Audit-ready records: CE-204 stores 365 days of daily totals and 12 months of monthly summaries, supporting fuel reconciliation.
Applications
- Fleet and logistics yards needing controlled fuel issue
- Construction, mining, and infrastructure projects with on-site refueling
- Agriculture and equipment depots
- Mobile bowsers and tanker trucks supplying remote locations
- Plant maintenance and generator fueling
Installation, Calibration & Support
- Site survey: Evaluate tank placement, power availability, grounding, and safety perimeter.
- Mechanical & electrical installation: Mount dispenser (wall/skid/trolley), connect suction/delivery lines, add filtration and valves.
- Calibration & proving: Issue calibration certificate, demonstrate preset and auto shut-off operation, and record baseline totals.
- Operator training: Provide SOPs covering safe fueling, record-keeping, and preventive maintenance.
- Service lifecycle: Annual maintenance contracts, recalibration visits, and rapid spare-part support nationwide.
Accessories & Upgrades
- Auto shut-off nozzles, swivel joints, anti-drip spouts
- Hose assemblies (3 – 6 m) with reels for tidy storage
- Inline particulate/water separators
- Receipt printers, preset controllers, pulse output modules
- Remote monitoring and telemetry kits
How to Choose the Right Dispenser
- Fuel throughput: Match flow rate and hose configuration to tank size and turnaround time.
- Power availability: Pick mobile DC units for bowsers or stationary AC units for depots.
- Control level: Mechanical simplicity vs digital preset/receipt tracking with memory.
- Hazard classification: Specify flameproof (Ex) motors in hazardous or petrochemical zones.
- Mobility: Decide between fixed pedestal, skid, trolley, or vehicle-mounted installation.
Frequently Asked Questions
What accuracy can I expect?
Standard builds deliver ±0.5 %; flameproof variants paired with CE-113 meter can achieve ±0.2 % when required.
Do you offer mobile diesel dispensers?
Yes—CE-130 preset dispensers mount on bowsers or trolleys and operate on 12/24 V DC (or 220 V AC when available).
Can I log dispensing transactions?
Digital models support receipt printing and pulse outputs for integration with loggers, ERP, or remote monitoring.
Do you provide preset dispensing?
CPU-based preset controllers are available on CE-130 mobile units and custom stationary builds.
Who handles installation and calibration?
Chintan Engineers provides nationwide installation, calibration certificates, operator training, and AMC support.
Ready to Deploy Your Diesel Dispenser?
Request a tailored quotation with flow rate, mounting, and accuracy requirements.
